Agricultural Piping System

Your TRU solution for better yields

Pipes

20mm to 400mm

Fittings

20mm to 250mm

Fabricated fittings

20mm to 315mm

Certified By

IS:13592
IS:14735

Applications

Agriculture

Key Advantages

Product Details

PIPE DIMENSIONS

Nominal Outside Diameter (Nominal Size)	Mean Outside Diameter		Outside Diameter at any point		Wall Of Thickness(mm)												Mean Socket Internal Diameter of Mid Point of Socket Length
	Mean Outside Diameter		Outside Diameter at any point		Class 1 0.25 MPa 2.5 Kg/cm²		Class 2 0.40 MPa 4.0 Kg/cm²		Class 3 0.60 MPa 6.0 Kg/cm²		Class 4 0.80 MPa 8.0 Kg/cm²		Class 5 1.00 MPa 10.0 Kg/cm²		Class 6 1.25 MPa 12.5 Kg/cm²		Mean Socket Internal Diameter of Mid Point of Socket Length
	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max
20	20.0	20.03	19.5	20.5	–	–	–	–	–	–	–	–	1.1	1.5	1.4	1.8	20.1	20.3
25	25.0	25.0	24.5	25.5	–	–	–	–	–	–	1.2	1.6	1.4	1.8	1.7	2.1	25.1	25.3
32	32.0	32.3	31.5	32.5	–	–	–	–	–	–	1.5	1.9	1.8	2.2	2.2	2.7	32.1	32.3
40	40.0	40.3	39.5	40.5	–	–	–	–	1.4	1.8	1.8	2.2	2.2	2.7	2.8	3.3	40.1	40.3
50	50.0	50.3	49.4	50.6	–	–	–	–	1.7	2.1	2.3	2.8	2.8	3.3	3.4	4.0	50.1	50.3
63	63.0	63.3	62.2	63.8	–	–	1.5	1.9	2.2	2.7	2.8	3.3	3.5	4.1	4.3	5.0	63.1	63.3
75	75.0	75.3	74.1	75.9	–	–	1.8	2.2	2.6	3.1	3.4	4.0	4.2	4.9	5.1	5.9	75.1	75.3
90	90.0	90.3	88.9	91.1	1.3	1.7	2.1	2.6	3.1	3.7	4.0	4.6	5.0	5.7	6.1	7.1	90.1	90.3
110	110.0	110.4	108.6	111.4	1.6	2.0	2.5	3.0	3.7	4.3	4.9	5.6	6.1	7.1	7.5	8.7	110.1	110.4
125	125.0	125.4	123.5	126.5	1.8	2.2	2.9	3.4	4.3	5.0	5.6	6.4	6.9	8.0	8.5	9.8	125.1	125.4
140	140.0	140.5	138.3	141.7	2.0	2.4	3.2	3.8	4.8	5.5	6.3	7.3	7.7	8.9	9.5	11.0	140.2	140.5
160	160.0	160.5	158.0	162.0	2.3	2.8	3.7	4.3	5.4	6.2	7.2	8.3	8.8	10.2	10.9	12.6	160.2	160.5
180	180.0	180.6	177.8	182.2	2.6	3.1	4.2	4.9	6.1	7.1	8.0	9.2	9.9	11.4	12.2	14.1	180.2	180.5
200	200.0	200.6	197.6	202.4	2.9	3.4	4.6	5.3	6.8	7.9	8.9	10.3	11.0	12.7	13.6	15.7	200.3	200.6
225	225.0	225.7	222.3	222.7	3.3	3.9	5.2	6.0	7.6	8.8	10.0	11.5	12.4	14.3	15.3	17.6	225.3	225.7
250	250.0	250.8	247.0	253.0	3.6	4.2	5.7	6.5	8.5	9.8	11.2	12.9	13.8	15.9	17.0	19.6	250.4	250.8
280	280.0	280.9	276.6	283.4	4.1	4.8	6.4	7.4	9.5	11.0	12.5	14.4	15.4	17.8	19.0	21.9	280.4	280.9
315	315.0	316.0	311.2	318.8	4.6	5.3	7.2	8.3	10.7	12.4	14.0	16.1	17.3	19.9	21.4	24.7	315.4	316.0
355	355.0	356.1	350.7	359.3	5.1	5.9	8.1	9.4	12.0	13.8	15.8	18.2	19.6	22.6	24.1	27.8	355.4	356.0
400	400.0	401.2	395.2	404.8	5.8	6.7	9.1	10.5	13.5	15.6	17.8	20.5	22.0	25.3	27.2	31.3	400.4	401.0

Note: All pipes are available with ISI Mark except 400mm.

FITTINGS RANGE

Size(mm)	StandardPacking	Small StandardPacking
63	120	–
75	80	–
90	40	–
110	60	–
160	12	–

Size(mm)	StandardPacking	Small StandardPacking
20	1500	300
25	900	180
32	500	100
40	400	–
50	220	–

Size(mm)	Standard Packing	Small Standard Packing
63	180	–
75	100	–
90	90	–
110	60	–
160	24	–

Size(mm)	StandardPacking	Small StandardPacking
50	140	–
63	70	–
75	40	–
90	32	–
110	22	–
160	8	–

Size(mm)	Standard Packing	Small Standard Packing
20	1000	200
25	500	100
32	350	70
40	230	–

Size(mm)	Standard Packing	Small Standard Packing
63	184	–
75	–	–
110	39	–

Size(mm)	StandardPacking	Small StandardPacking
40	330	–
50	160	–
63	153	–
75	90	–
90	45	–
110	36	–
140	19	–
160	10	–
200	4	–

Size(mm)	StandardPacking	Small StandardPacking
50	250	–
63	200	–
75	150	–
90	80	–
110	50	–

Size(mm)	Standard Packing	Small Standard Packing
20	1200	300
25	1000	200
32	800	160
40	400	–

Size(mm)	StandardPacking	Small StandardPacking
20	1000	200
25	900	180
32	600	–
40	300	–
50	200	–
63	180	–
75	100	–
90	100	–
110	60	–

Size(mm)	Standard Packing	Small Standard Packing
63	100	–
75	70	–
90	40	–
110	20	–
140	10	–
160	6	–
180	5	–
200	3	–

Size(mm)	StandardPacking	Small StandardPacking
40	350	–
50	200	–
63	100	–
75	70	–
90	40	–
110	20	–
125	10	–
140	10	–
160	6	–
200	–	–

Size(mm)	StandardPacking	Small StandardPacking
20	1000	–
25	600	–
32	500	–
40	350	–
50	200	–
63	100	–
75	70	–
90	40	–
110	20	–
140	–	–
160	6	–

Size(mm)	StandardPacking	Small StandardPacking
63	200	–
75	200	–
90	120	–
110	100	–
140	20	–
160	20	–
180	20	–
200	15	–
225	12	–
250	8	–
315	4	–

Size(mm)	Standard Packing	Small Standard Packing
63	200	–
75	200	–
90	120	–
110	100	–
125		–
140	20	–
160	20	–
180	20	–
200	15	–
225	12	–
250	8	–
315	4	–

Size(mm)	StandardPacking	Small StandardPacking
75	200	–
90	120	–
110	100	–
140	20	–
160	20	–
200	15	–

Size(mm)	StandardPacking	Small StandardPacking
20	1000	200
25	840	140
32	500	100
40	400	–
50	200	–
63	120	–
75	70	–
90	40	–
110	24	–

Size(mm)	Standard Packing	Small Standard Packing
20	1300	260
25	1100	220
32	600	120
40	400	–
50	200	–
63	150	–
75	100	–
90	78	–
110	34	–

Size(mm)	StandardPacking	Small StandardPacking
20	200	–
25	120	–
32	84	–
40	56	–
50	36	–
63	24	–

REDUCER

Size(mm)	StandardPacking	Small StandardPacking
25 X 20	1000	–
32 X 20	1000	–
32 X 25	600	–
40 X 32	450	–
50 X 40	250	–
50 X 32	300	–
63 X 50	150	–
63 X 40	200	–
75 X 63	120	–
75 X 50	126	–
90 X 75	60	–
90 X 63	72	–
110 X 90	40	–
110 X 75	40	–
110 X 63	40	–
140 X 110	36	–
160 X 110	27	–

REDUCING BUSH

Size(mm)	StandardPacking	Small StandardPacking
25 X 20	1000	–
32 X 20	800	–
32 X 25	800	–
40 X 32	600	–
50 X 40	500	–
50 X 32	300	–
63 X 50	200	–
75 X 63	150	–
90 X 75	80	–
90 X 63	100	–
110 X 90	60	–
110 X 75	54	–

Size(mm)	Standard Packing	Small Standard Packing
75 X 63		–
90 X 75		–
90 X 63		–

Size(mm)	StandardPacking	Small StandardPacking
40×25	160	–
40×20	170	–
63X50	60	–
63X40	60	–
63X32	70	–
63X25	60	–
63X20	60	–
90×75	20	–
90×63	20	–
90×50	20	–
110×90	–	–
110×75	12	–

Size(mm)	Standard Packing	Small Standard Packing
160 X 110	10	–

Size(mm)	StandardPacking	Small StandardPacking
50	80	–
63	66	–
75	40	–
90	28	–
110	12	–
160	4	–

Size(mm)	Standard Packing	Small Standard Packing
20	650	130
25	400	80
32	200	40
40	150	–

Size(mm)	Standard Packing	Small Standard Packing
63	140	–
75	90	–
110	28	–

Size(mm)	StandardPacking	Small StandardPacking
40	258	–
50	163	–
63	108	–
75	66	–
90	39	–
110	26	–
140	16	–
160	8	–

Size(mm)	StandardPacking	Small StandardPacking
25 X 1/2	300	–
32 X 1/2	250	–

Size(mm)	Standard Packing	Small Standard Packing
25 X 1/2	250	–
32 X 1/2	250	–

Size(mm)	Standard Packing	Small Standard Packing
25 X 1/2	175	–
32 X 1/2	175	–

Size(mm)	StandardPacking	Small StandardPacking
63×32	77	–
63×25	77	–
63×20	77	–
75×32	70	–
75×25	70	–
75×20	70	–
90×32	64	–
90×25	64	–
90×20	64	–

Mechanical
Tensile Strength		415 – 525 kg/cm²
Compression Strength		550 – 910 kg/cm²
Flexural Strength		680 – 1100 kg/cm²
Izod Impact Strength		4 – 5 kg/cm²
Shore Hardness		D 65 – 85

THERMAL
Coefficient of Linear Expansion		0.08 mm/M°C
Vicat Softening Temperature		> 78°C
Max. Operating Temperature		60°C

Physical
Water Absorption		< 4mg/cm³

Product Details

Pipe Dimensions

PIPE DIMENSIONS

Nominal Outside Diameter (Nominal Size)	Mean Outside Diameter		Outside Diameter at any point		Wall Of Thickness(mm)												Mean Socket Internal Diameter of Mid Point of Socket Length
	Mean Outside Diameter		Outside Diameter at any point		Class 1 0.25 MPa 2.5 Kg/cm²		Class 2 0.40 MPa 4.0 Kg/cm²		Class 3 0.60 MPa 6.0 Kg/cm²		Class 4 0.80 MPa 8.0 Kg/cm²		Class 5 1.00 MPa 10.0 Kg/cm²		Class 6 1.25 MPa 12.5 Kg/cm²		Mean Socket Internal Diameter of Mid Point of Socket Length
	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max
20	20.0	20.03	19.5	20.5	–	–	–	–	–	–	–	–	1.1	1.5	1.4	1.8	20.1	20.3
25	25.0	25.0	24.5	25.5	–	–	–	–	–	–	1.2	1.6	1.4	1.8	1.7	2.1	25.1	25.3
32	32.0	32.3	31.5	32.5	–	–	–	–	–	–	1.5	1.9	1.8	2.2	2.2	2.7	32.1	32.3
40	40.0	40.3	39.5	40.5	–	–	–	–	1.4	1.8	1.8	2.2	2.2	2.7	2.8	3.3	40.1	40.3
50	50.0	50.3	49.4	50.6	–	–	–	–	1.7	2.1	2.3	2.8	2.8	3.3	3.4	4.0	50.1	50.3
63	63.0	63.3	62.2	63.8	–	–	1.5	1.9	2.2	2.7	2.8	3.3	3.5	4.1	4.3	5.0	63.1	63.3
75	75.0	75.3	74.1	75.9	–	–	1.8	2.2	2.6	3.1	3.4	4.0	4.2	4.9	5.1	5.9	75.1	75.3
90	90.0	90.3	88.9	91.1	1.3	1.7	2.1	2.6	3.1	3.7	4.0	4.6	5.0	5.7	6.1	7.1	90.1	90.3
110	110.0	110.4	108.6	111.4	1.6	2.0	2.5	3.0	3.7	4.3	4.9	5.6	6.1	7.1	7.5	8.7	110.1	110.4
125	125.0	125.4	123.5	126.5	1.8	2.2	2.9	3.4	4.3	5.0	5.6	6.4	6.9	8.0	8.5	9.8	125.1	125.4
140	140.0	140.5	138.3	141.7	2.0	2.4	3.2	3.8	4.8	5.5	6.3	7.3	7.7	8.9	9.5	11.0	140.2	140.5
160	160.0	160.5	158.0	162.0	2.3	2.8	3.7	4.3	5.4	6.2	7.2	8.3	8.8	10.2	10.9	12.6	160.2	160.5
180	180.0	180.6	177.8	182.2	2.6	3.1	4.2	4.9	6.1	7.1	8.0	9.2	9.9	11.4	12.2	14.1	180.2	180.5
200	200.0	200.6	197.6	202.4	2.9	3.4	4.6	5.3	6.8	7.9	8.9	10.3	11.0	12.7	13.6	15.7	200.3	200.6
225	225.0	225.7	222.3	222.7	3.3	3.9	5.2	6.0	7.6	8.8	10.0	11.5	12.4	14.3	15.3	17.6	225.3	225.7
250	250.0	250.8	247.0	253.0	3.6	4.2	5.7	6.5	8.5	9.8	11.2	12.9	13.8	15.9	17.0	19.6	250.4	250.8
280	280.0	280.9	276.6	283.4	4.1	4.8	6.4	7.4	9.5	11.0	12.5	14.4	15.4	17.8	19.0	21.9	280.4	280.9
315	315.0	316.0	311.2	318.8	4.6	5.3	7.2	8.3	10.7	12.4	14.0	16.1	17.3	19.9	21.4	24.7	315.4	316.0
355	355.0	356.1	350.7	359.3	5.1	5.9	8.1	9.4	12.0	13.8	15.8	18.2	19.6	22.6	24.1	27.8	355.4	356.0
400	400.0	401.2	395.2	404.8	5.8	6.7	9.1	10.5	13.5	15.6	17.8	20.5	22.0	25.3	27.2	31.3	400.4	401.0

Note: All pipes are available with ISI Mark except 400mm.

Fittings

FITTINGS RANGE

Size(mm)	StandardPacking	Small StandardPacking
63	120	–
75	80	–
90	40	–
110	60	–
160	12	–

Size(mm)	StandardPacking	Small StandardPacking
20	1500	300
25	900	180
32	500	100
40	400	–
50	220	–

Size(mm)	Standard Packing	Small Standard Packing
63	180	–
75	100	–
90	90	–
110	60	–
160	24	–

Size(mm)	StandardPacking	Small StandardPacking
50	140	–
63	70	–
75	40	–
90	32	–
110	22	–
160	8	–

Size(mm)	Standard Packing	Small Standard Packing
20	1000	200
25	500	100
32	350	70
40	230	–

Size(mm)	Standard Packing	Small Standard Packing
63	184	–
75	–	–
110	39	–

Size(mm)	StandardPacking	Small StandardPacking
40	330	–
50	160	–
63	153	–
75	90	–
90	45	–
110	36	–
140	19	–
160	10	–
200	4	–

Size(mm)	StandardPacking	Small StandardPacking
50	250	–
63	200	–
75	150	–
90	80	–
110	50	–

Size(mm)	Standard Packing	Small Standard Packing
20	1200	300
25	1000	200
32	800	160
40	400	–

Size(mm)	StandardPacking	Small StandardPacking
20	1000	200
25	900	180
32	600	–
40	300	–
50	200	–
63	180	–
75	100	–
90	100	–
110	60	–

Size(mm)	Standard Packing	Small Standard Packing
63	100	–
75	70	–
90	40	–
110	20	–
140	10	–
160	6	–
180	5	–
200	3	–

Size(mm)	StandardPacking	Small StandardPacking
40	350	–
50	200	–
63	100	–
75	70	–
90	40	–
110	20	–
125	10	–
140	10	–
160	6	–
200	–	–

Size(mm)	StandardPacking	Small StandardPacking
20	1000	–
25	600	–
32	500	–
40	350	–
50	200	–
63	100	–
75	70	–
90	40	–
110	20	–
140	–	–
160	6	–

REDUCER

Size(mm)	StandardPacking	Small StandardPacking
25 X 20	1000	–
32 X 20	1000	–
32 X 25	600	–
40 X 32	450	–
50 X 40	250	–
50 X 32	300	–
63 X 50	150	–
63 X 40	200	–
75 X 63	120	–
75 X 50	126	–
90 X 75	60	–
90 X 63	72	–
110 X 90	40	–
110 X 75	40	–
110 X 63	40	–
140 X 110	36	–
160 X 110	27	–

REDUCING BUSH

Size(mm)	StandardPacking	Small StandardPacking
25 X 20	1000	–
32 X 20	800	–
32 X 25	800	–
40 X 32	600	–
50 X 40	500	–
50 X 32	300	–
63 X 50	200	–
75 X 63	150	–
90 X 75	80	–
90 X 63	100	–
110 X 90	60	–
110 X 75	54	–

Properties

Mechanical
Tensile Strength		415 – 525 kg/cm²
Compression Strength		550 – 910 kg/cm²
Flexural Strength		680 – 1100 kg/cm²
Izod Impact Strength		4 – 5 kg/cm²
Shore Hardness		D 65 – 85

THERMAL
Coefficient of Linear Expansion		0.08 mm/M°C
Vicat Softening Temperature		> 78°C
Max. Operating Temperature		60°C

Physical
Water Absorption		< 4mg/cm³

Do's & Don'ts

CUTTING

Do's

It’s imperative to mark the pipe from all sides so that pipe is cut with the help of a Hand Saw. It should be a right-angle cut from all sides. The cut piece should be with burr on the edges.

Don'ts

Do not cut slant or unevenly.

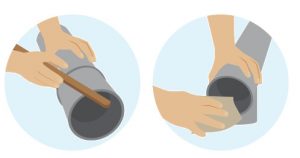

CHAMFERING

Do's

After cutting, the pipe needs to be chamfered from the outer sides. It is advisable to provide approximately 2mm wide, 150 chamfers on the spigot end.

Don'ts

Do not proceed with the installation of the pipe without chamfering.

DERUBBING AND RIDGE REMOVAL

Do's

Remove all the burr and ridges accumulated on the inner as well as the outer edges of the pipe with the help of deburring Knife, file or abrasive paper.

Don'ts

Do not apply solvent cement without conducting DrDo not proceed with the installation of pipe without deburring.

CLEANING

Do's

Thoroughly clean the pipe with a dry cloth where the solvent cement is going to be applied, to avoid dust, dirt, oil, moisture and other foreign material during the installation process.

Don'ts

Do not join the pipe without cleaning the pipe ends.

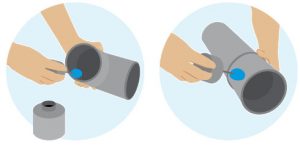

APPLICATION OF SOLVENT CEMENT

Do's

Mark the pipe length to be inserted for jointing. Apply a liberal coat of solvent cement with the help of the

Don'ts

Do not apply excess solvent cement on the pipe and do not use solvent cement by hand.

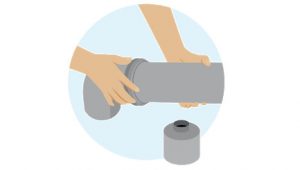

JOINTING

Do's

Push the pipe inside the fitting so that it goes inside it equally from all sides.
Wipe off excess solvent cement that comes out from all the edges. Hold the joint for 2 minutes so that the jointing is perfect.

Don'ts

Do not use a hammer or half-push the pipe.
FOR THREADED JOINTS
Don’t over-tighten with a pipe wrench.

CPVC^® Plumbing Systems

Your TRU shield against heat and

Heat Deflection at 110°

Lowest Bactetrial Growth

Consistent Product Quality

uPVC Plumbing Systems

Your TRU choice for clean water

Lead-Free

High durability

Corosion-free

Trubore Water Tanks

Your TRU reservoir for safe storage

Multi-layered design

Bacteria-resistant

Build for lasting use

Foamcore Piping System

Your TRU partner for lasting performance

Light weight

Cost effective

Impact resistant

SWR Piping System

Your TRU choice for seamless drainage

Effiencent drainage

Anti-leak design

Weatherproof

Borewell Piping System

Your TRU companion for water sourcing

Threaded joints

Strong build

Easy installation

Agricultural Piping System

Certified By

Applications

Key Advantages

Light weight, easy to transport, store, handle and install

Smooth bore ensures higher flow compared to G.I. pipes & fittings of the same size. No clogging. Saves operational cost

Quick to install, solvent cement based jointing system

Corrosion resistance – uPVC is rustproof material therefore, bore diamater remains constant, ensuring constant flow over its lifetime

Long working life (if operated under normal/recommended conditions)

Lightweight but strong

Cost-effective. Added value for your money

Product Details

PIPE DIMENSIONS

FITTINGS RANGE

Product Details

PIPE DIMENSIONS

FITTINGS RANGE

Do's & Don'ts

Do's

Don'ts

Do's

Don'ts

Do's

Don'ts

Do's

Don'ts

Do's

Don'ts

Do's

Don'ts

Related Products

CPVC^® Plumbing Systems

uPVC Plumbing Systems

Trubore Water Tanks

Foamcore Piping System

SWR Piping System

Borewell Piping System

Agricultural Piping System

Certified By

Applications

Key Advantages

Light weight, easy to transport, store, handle and install

Smooth bore ensures higher flow compared to G.I. pipes & fittings of the same size. No clogging. Saves operational cost

Quick to install, solvent cement based jointing system

Corrosion resistance – uPVC is rustproof material therefore, bore diamater remains constant, ensuring constant flow over its lifetime

Long working life (if operated under normal/recommended conditions)

Lightweight but strong

Cost-effective. Added value for your money

Product Details

PIPE DIMENSIONS

FITTINGS RANGE

COUPLER 6KG

COUPLER 6KG

COUPLER (10 KG)

COUPLER (10 KG)

COUPLER LW

COUPLER LW

ELBOW (6 KG)

ELBOW (6 KG)

ELBOW 10KG

ELBOW 10KG

Elbow Esteem

Elbow Esteem

ELBOW LW

ELBOW LW

END CAP 6KG

END CAP 6KG

END CAP 10KG

END CAP 10KG

END CAP LW

END CAP LW

END CAP THREADED

END CAP THREADED

FAB. BEND 4KG

FAB. BEND 4KG

FAB. BEND 6KG

FAB. BEND 6KG

FAB. BEND 10KG

FAB. BEND 10KG

FAB. COUPLER 4KG

FAB. COUPLER 4KG

FAB. COUPLER 6KG

FAB. COUPLER 6KG

FAB. COUPLER 10KG

FAB. COUPLER 10KG

F.T.A

F.T.A

M.T.A

M.T.A

PVC BALL VALVE

PVC BALL VALVE

REDUCER

REDUCER

REDUCING BUSH

REDUCING BUSH

REDUCING F.T. ADAPTOR

REDUCING F.T. ADAPTOR

REDUCING TEE

REDUCING TEE

REDUCING TEE LW

REDUCING TEE LW

TEE 6KG

TEE 6KG

TEE 10KG

TEE 10KG

TEE ESTEEM

TEE ESTEEM

TEE LW

TEE LW

F.T.A BRASS INSERT

F.T.A BRASS INSERT

F.T. ELBOW BRASS INSERT

F.T. ELBOW BRASS INSERT

F.T. TEE BRASS INSERT

F.T. TEE BRASS INSERT

SERVICE SADDLE

SERVICE SADDLE
